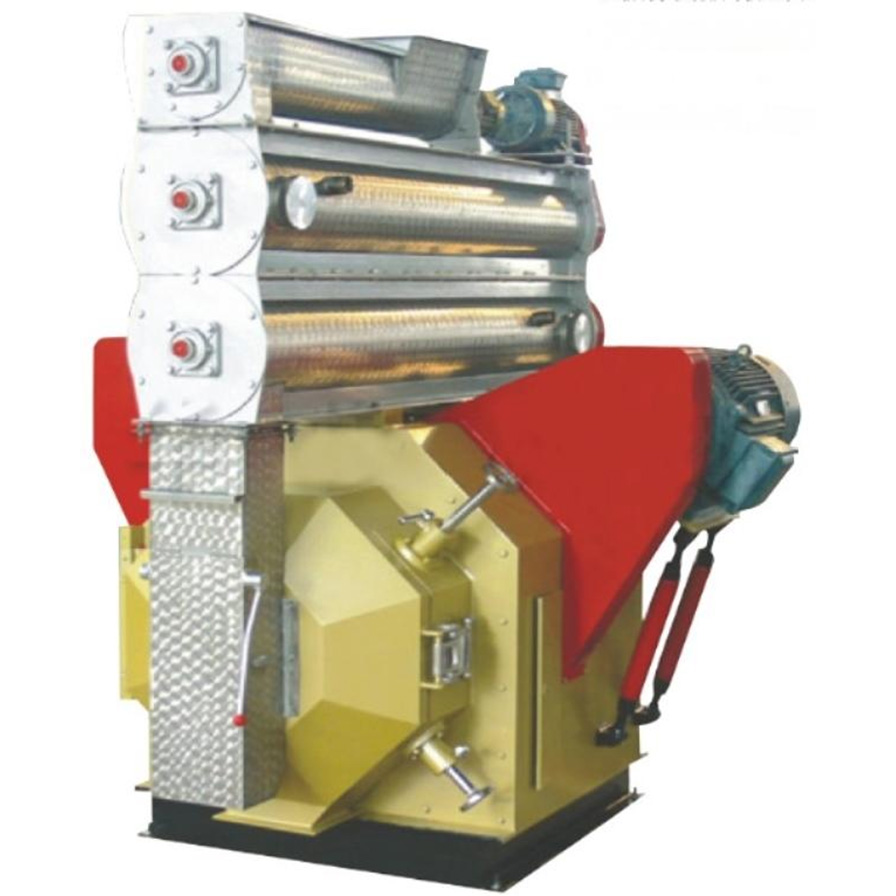

This machine adopts a dual motor SPB strong narrow belt transmission system, which has ideal transmission efficiency and rotation
Stable, high production, low noise, no oil leakage pollution, and lower component maintenance costs;
This model is equipped with φ 1.5- φ For environments with multiple apertures and thicknesses between 12mm, users can choose between
Any selection is necessary to achieve higher technical and economic benefits;
Fixed stainless steel cutter device for more intuitive adjustment; Quick release hoop type ring mold, which can be equipped with a linkage type pressure roller adjustment mechanism and ring mold lifting device;
This model adopts frequency converter control for feeding, equipped with overload protection device and external discharge mechanism;
The pressure rod oil pump lubrication device is fast, labor-saving, safe and reliable, and can achieve uninterrupted refueling;
Suitable for granulation of high-quality livestock, poultry, aquatic feed, and other materials.
Model規格 | HKJ35B | KIKI40B | HKJ45B | HKJ50B |
主電機Power(KW) | 2×30 | 2×45 | 2×55 | 2×75 |
調質電機Power(KW) | 2.2單層 | 4單層 | 4單層 | 5.5單層 |
Capacity(t/h) | 3~7 | 4~10 | 5~12 | 6~18 |
環模直徑(MM) | φ350 | φ400 | φ450 | φ508 |
喂料電機Power(KW) | 1.5 | 1.5 | 2.2 | 2.2 |
顆粒規格(MM) | φ1.5~φ12 | φ1.5~φ18 | φ1.5~φ18 | φ2~φ18 |
